If you’ve ever walked into a power plant, chances are it looked pretty much like a factory. Long rows of machines with noisy fans and spinning metal parts, all connected to one another by miles of wire. And the workers – dressed in hard hats, gloves and safety glasses – resembled factory laborers more than anything else.

This is because for most of its history electricity was generated from steam-driven turbines that were cooled by water from natural sources such as rivers or lakes. In other words: fossil fuels + cooling system = electric power plant. But now things have changed dramatically thanks to new technologies which can generate clean energy from so-called “renewables” such as wind and solar power plants without any kind of cooling system.

steam turbine

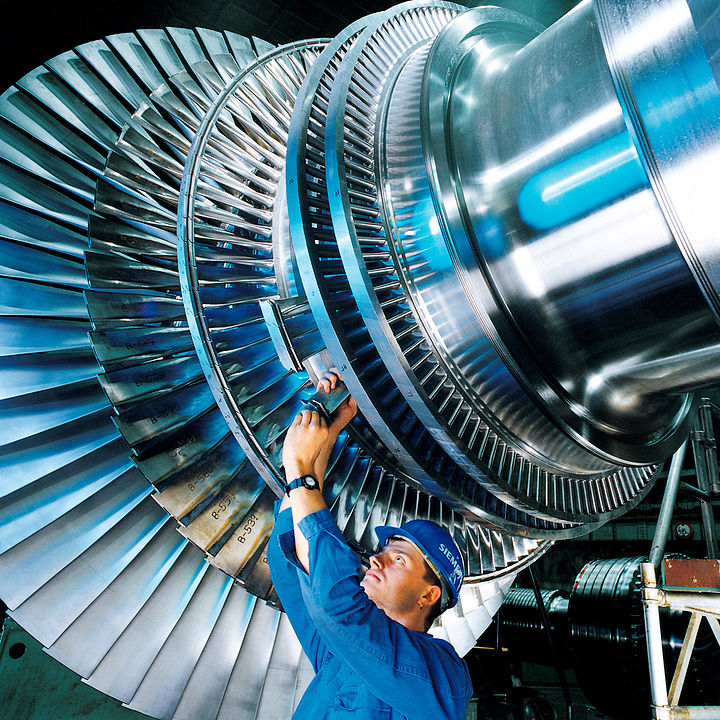

Rotor of a steam turbine, used in modern a power plant image source

However, the grid of today still relies on coal and gas power plants to produce what is needed to drive turbines that generate electricity. This process of converting heat into electricity is called the thermodynamic cycle and it has not changed much over the last century. And since fossil fuels are still cheaper than renewable energy sources (although the price gap is closing) the grid of today is still largely powered by fossil fuel sources.

What is the modern electricity grid

The modern electricity grid is a complex system that uses electricity to power our homes and businesses. It is made up of power plants, transmission lines, transmission substations, distribution lines, and distribution substations. The grid allows us to convert power from a fossil fuel power plant, hydroelectric plant, or renewable energy project to alternating current (AC), which is then distributed into our homes and businesses all over the grid.

Electricity Grid

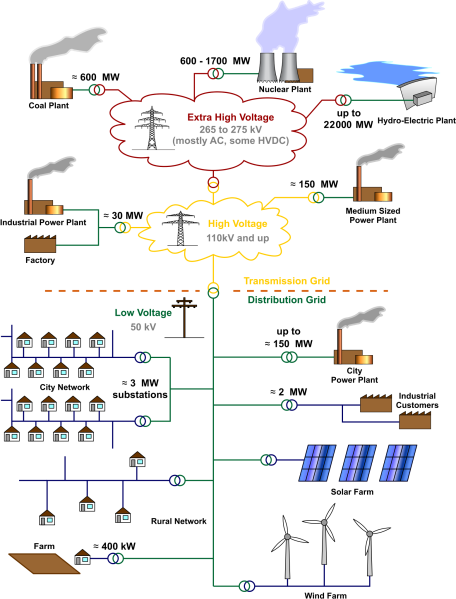

Modern Electricity Grid *Image Source

Technologies used in modern electricity grids

The technologies used in modern electricity grids include power transformers, transmission lines, transmission substations, distribution lines, and distribution substations. Power transformers are used to convert power from one voltage level to another. Transmission lines are used to carry high-voltage electricity over long distances. Transmission substations are used to regulate the flow of electricity on the transmission lines. Distribution lines are used to distribute electricity from the transmission substations to our homes and businesses. And distribution substations are used to regulate the flow of electricity on the distribution lines.

How do utilities manage the grid and keep it running smoothly

Utilities manage the grid and keep it running smoothly by monitoring the flow of electricity and making sure that it is delivered to our homes and businesses in the correct voltage. They also work to ensure that the grid is always available, reliable, and secure. If the supply of electricity in insufficient to meet demand they may implement voluntary or involuntary load shedding procedures.

Your power company measures customer usage through smart meters or estimated bills so they can determine how much energy a customer is using at a given time. This information, along with the condition of their equipment and distribution lines, helps them pinpoint where power outages are happening across the grid network.

When an outage occurs, crews work to quickly identify and fix any problems or dangers that might cause more issues for customers. They also keep track of what caused the outage to help prevent it from happening again.

Many utilities also have automated equipment that can reroute electricity around damaged equipment, switch to a different line if a problem arises on a transmission line and send alerts to customers when outages happen so they can be prepared. This helps minimize the impact of power outages while repairs are made.

In addition to managing power outages, utilities also work to ensure that the grid is safe for workers and communities. They inspect equipment regularly, run tests on underground lines to identify problems before they happen, and work with communities as part of a team effort to keep everyone as safe as possible.

Power companies also help customers use electricity more efficiently by offering programs that reward people for using energy-saving lightbulbs, appliances, and equipment that uses renewable energy sources. They also help businesses save money by offering rebates for installing solar panels or making their facilities more efficient.

The future of the power grid will include smarter technology to keep up with ever-changing customer demands for clean, reliable electricity. New systems will allow customers to connect with their utility to get real-time information about how much power they’re using, pay bills online, and get alerts when outages happen.

Another priority for utilities is to update the electricity grid by adding more sensors covering all energy sectors so they can monitor the larger system in real time. This will allow them to detect and respond to problems faster than ever before.

Electric Reliability Council of Texas (ERCOT)

In Texas, the responsibility for making sure the grid runs reliably lies in the hands of ERCOT.  ERCOT is the independent system operator for the Texas grid. That means ERCOT oversees the flow of power on the grid and ensures that there is enough electricity to meet demand. ERCOT also manages the state’s energy markets.

In addition to managing the Texas electric grid, ERCOT also works with other power system operators in North America as part of the North American Electric Reliability Cooperation (NERC). This is an entity that sets and enforces the rules for how power grids work and coordinates emergency response groups in case there is a problem on the grid.
